GLOBE SINGLE SEATED 2-WAY VALVE
Dembla Two Way Globe Control Valves Are Available In Wide Range Of Materials, Sizes, Trim Forms And Other Features. Suitable for : General application, high pressure application, high pressure drop application, high temperature application.
Offer Fine Control For : Liquids, Oils, Gases, Steam.
GLOBE THREE WAY CONTROL VALVE

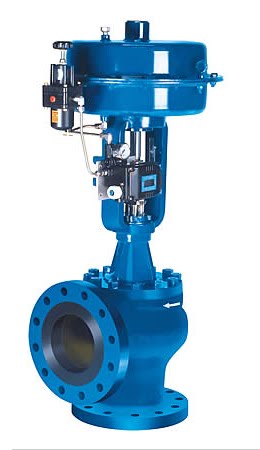

This Series Is Widely Used For Mixing Of Two Fluids Or Diverting Of One Stream In Two Different Directions. The Valve Is Popular For Applications Involving Thermic Fluid, Chilled Water, Brine, Steam And Air.GLOBE ANGLE CONTROL VALVE
The Inlet And Outlet Are At Right Angle. These Valves Are Largely Used For Viscous Liquids And Aggressive Liquids Carrying Suspended Particles. The Angle Valves With The Unique Ventury Type Outlets Are Common Choice For The Severe Applications Involving High Differential Pressure In The Presence Of Flashing.ELECTRIC GLOBE CONTROL VALVE
Nominal pressure rating:
PN1.0,1.6,2.5,4.0,6.4MPa, ANSI150,300
Nominal diameter:DN20～300mm
Working temperature:
Stainless steel metal seat:-20～230℃,-20~425℃
PTFE soft seat:-20~150℃
Working voltage:220V,380V
Material:Body: (1)WCB (2)CF8 (3)CF8M (4) CF3M
Trim: (1)SS304 (2)SS316 (3)SS316L
